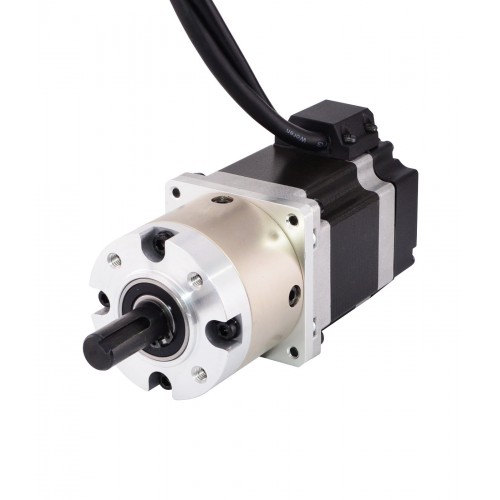

Nema 23 Closed-loop Geared Stepper Motor 23HS22-2804D-PG4-E1000 1000CPR with 4:1 Planetary Gearbox
- Manuals and Documentation: Motor Datasheet:
- 5% Off On Total Order Amount!
- Enjoy Discount at Checkout!
- No Need Coupon Code!
- Valid Till November 4th,2024
Nema 23 Closed-loop Geared Stepper Motor 23HS22-2804D-PG4-E1000 1000CPR with 4:1 Planetary Gearbox
Motor Specification
- Manufacturer Part Number: 23HS22-2804D-PG4-E1000
- Motor Type: Bipolar Stepper
- Frame Size: 57 x 57mm
- Motor Length: 56mm
- Step Angle without Gearbox: 1.8deg
- Holding Torque without Gearbox: 1.25Nm(177oz.in)
- Rated Current/phase: 2.8A
- Phase Resistance: 0.9ohms
- Voltage: 2.6V
- Inductance: 2.5mH ± 20%(1KHz)
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specifications
- Gearbox Type: Planetary
- Gearbox Length: 48mm
- Gear Ratio: 4.25
- Efficiency: 90%
- Shaft Diameter: Φ12mm
- Shaft Length: 30mm
- Key-way length: 20mm
- Key-way width: 4mm
- Backlash at No-load: <=1.5 deg
- Max.Permissible Torque: 20Nm(2832oz.in)
- Moment Permissible Torque: 30Nm(4248oz.in)
- Shaft Maximum Axial Load: 100N
- Shaft Maximum Radial Load: 200N
Encoder Specification
- Driving Voltage : 5V
- Output current : 55mA
- Resolution : 1000ppr
- Output Signal : 2 Channels
- Bore Diameter : Φ8mm
- Output Frequency : ≤1MHz
- Running Speed : ≤5000rpm
- IP Protection : IP20
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Green
|
Yellow
|
Blue
|
Motor Specification | |
---|---|
Step Angle(°) | 1.8 |
Body Length(mm) | 56 |
Holding Torque (Ncm) | 125 |
Holding Torque (oz.in) | 177 |
Inductance(mH) | 2.5 |
Lead Length(mm) | 500 |
Motor Nema Size | Nema 23 |
No. of Lead | 4 |
Phase Resistance(ohm) | 0.9 |
Rated Current (A) | 2.8 |
Shaft Diameter(mm) | 12 |
Shaft Length(mm) | 30 |
Bipolar/Unipolar | Bipolar |
Electrical Specification | |
Output Frequency(MHz) | ≤1MHz |
Encoder Specification | |
Rated Voltage(V) | 5V |
Output Current(mA) | 55 |
Resolution(CPR) | 1000 |
Output Signal Channels | 2 Channels |
Running Speed(rpm) | ≤5000rpm |
IP Protection | IP20 |
Physical Specification | |
Weight(g) | 1500 |
