Nema 23 Stepper Motor 23HS30-2804S1 1.9Nm 3.2V 4Wires Φ6mm Shaft

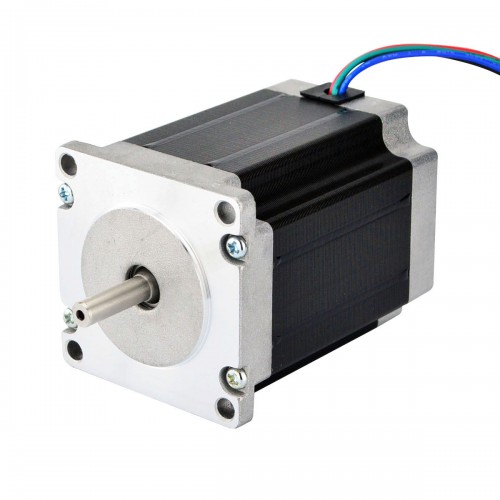

This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x76mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.9Nm (269oz.in).
Please Notice: This shaft is 6mm diameter.
Electrical Specification
- Manufacturer Part Number: 23HS30-2804S1
- Motor Type: Bipolar Stepper
- Step Angle: 1.8°
- Holding Torque: 1.9Nm(269oz.in)
- Rated Current/phase: 2.8A
- Voltage: 3.2V
- Phase Resistance: 1.13ohms
- Inductance: 5.4mH ± 20%(1KHz)
Physical Specification
- Frame Size: 57 x 57mm
- Body Length: 76mm
- Shaft Diameter: Φ6mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.2kg
Connection
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Holding Torque (Ncm) | 190 |
Holding Torque (oz.in) | 269 |
Inductance(mH) | 5.4 |
Phase Resistance(ohm) | 1.13 |
Rated Current (A) | 2.8 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 76 |
Frame Size(mm) | 57x57 |
Single Shaft/Dual Shaft | Single Shaft |
Shaft Type | D-Cut |
Shaft Diameter(mm) | 6 |
Shaft Length(mm) | 21 |
No. of Lead | 4 |
Lead Length(mm) | 500 |
Weight(g) | 1100 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
