1500W DC Servo Motor 130ASM1500-5-2500C 48V 4.78Nm 37A 3000RPM 130 x 130mm
The 1500W DC servo motor (model 130ASM1500-5-2500C) operates at 48V, delivering a rated torque of 4.78Nm and a peak torque of 14.3Nm. With a rated speed of 3000RPM and a maximum speed of 3500RPM, it features a 37A rated current and a 2500-line magnetic encoder. The motor has a 130x130mm frame size and a rotor inertia of 11.2 x 10^-4 kg·cm².
Servo Motor Specification
Part Number: 130ASM1500-5-2500C
Power Supply Voltage:48V
Rated Power: 1500W
Rated Torque: 4.78Nm( 676.90 oz.in)
Peak Torque: 14.3Nm
Rated Speed: 3000 RPM
Max Speed: 3500 RPM
Rated Current:37A
Max Current:74A
Motor pole pairs:5
Rotor inertia(10^-4kg*cm²):11.2
Encoder:2500 lines magnetic encoder
Frame Size:130x130mm;

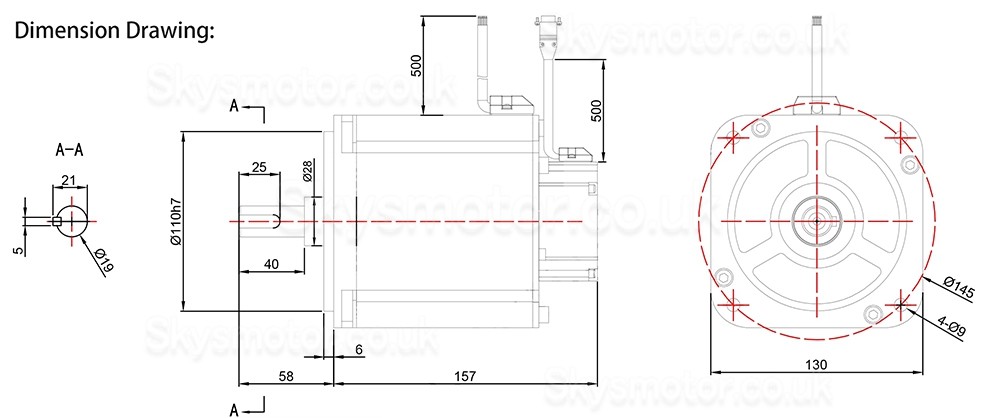

Physical Specifications:
Frame Size:130 x 130mm
Body Length:215mm
Shaft Diameter:19mm
Shaft Length:58mm
Keyway Length:25mm
Weight: 6kg;
Servo Motor Specification | |
---|---|
Rated Current | 37 |
Power supply voltage | 48 |
Encoder | 2500 Line |
Motor Base | 130x130 |
Servo Motor Type | DC Servo Motor |
Rated Power(W) | 1500 |
Rated Speed(rpm) | 3000 |
Rated Torque(Nm) | 4.78 |
Peak Speed(rpm) | 3500 |
Peak Torque(Nm) | 14.3 |
With Brake | Without brake |
Physical Specification | |
Body Length(mm) | 157 |
Frame Size(mm) | 130 x 130 |
Shaft Diameter(mm) | 19 |
Shaft Length(mm) | 40 |
Shaft Type | Keyway |
Single Shaft/Dual Shaft | Single Shaft |
Weight(g) | 6000 |
Keyway Length | 25 |
