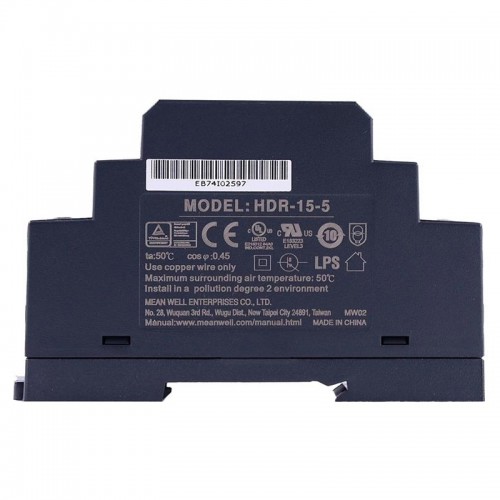

MeanWell HDR-15-5 15W 5VDC 2.4A Ultra Slim Step Shape DIN Rail Power Supply
MEAN WELL HDR-15 is one economical ultra slim 15W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 17.5mm(1SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-15 is designed with plastic housing that it can effectively preventuser from electric hazards. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL508,UL62368-1,BS EN/EN61558-2-16) make HDR-15 a very competitive power supply solution for household and industrial applications.
Features
Brand MEANWELL
5V DC 2.4A output
AC input voltage range: 85 ~ 264VAC
Rated power: 12W
UItra slim design with 17.5mm(1SU) width
Universal input 85~264VAC(277VAC operational)
No load power consumption<0.3W
Isolation class II
Pass LPS (Limited power source)
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection (working temperature:-30~+70°C)
DIN rail TS-35/7.5 or 15 mountable
LED indicator for power on
Over voltage category Ⅲ
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Power Supply Specification | |
---|---|
Max. Output Current(A) | 2.4 |
Power(W) | 12 |
Brand | MEANWELL |
Output Voltage(VDC) | 5 |
Input Voltage(VAC/VDC) | 85 - 264 / 120 - 370 |
PFC Function | No |
Dim.(LxWxH)(mm/in.) | 17.5 x 90 x 54.5 / 0.69 x 3.54 x 2.15 |
Input Frequency(Hz) | 47 - 63 |
Efficiency(%) | 80% |
Physical Specification | |
Product Type | POWER SUPPLY |
