NEMA 11 External Acme Linear Stepper Motor 11E13S1004HD5-150RS Lead 5.08mm Lead Length 150mm

NEMA 11 External Acme Linear Stepper Motor 11E13S1004HD5-150RS Lead 5.08mm Lead Length 150mm

This model is a Nema 11 ACME screw linear stepper motor with a 32.2mm body length, 1.8 degree step angle and 1A rated current. It is integrated with a Φ4.76mm(0.1874") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 5.08mm(0.2") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

Manufacturer Part Number: 11E13S1004HD5-150RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 0.05Nm(7.08oz.in)

Rated Current/phase: 1A

Phase Resistance: 2.1ohms

Inductance: 1.5mH±20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm

Body Length: 32.2mm

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ4.76mm(0.1874")

Lead/Step: 0.0254mm(0.001")

Lead Travel/Revolution: 5.08mm(0.2")

Number of Leads: 4

Number of Thread Starts: 4

Lead Length: 300mm

Connection

Lead Screw End Machining

Anti-Backlash Nut

SKYSMOTOR provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and SKYSMOTOR standard plastic nut after millions of cycles. SKYSMOTOR guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, SKYSMOTOR provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All SKYSMOTOR standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

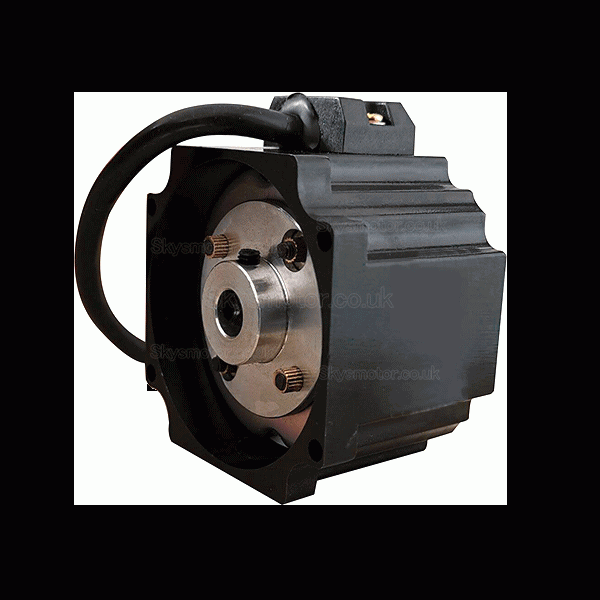

Brakes

Especially Vertical applications or holding motors from sudden power-off status, SKYSMOTOR standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, SKYSMOTOR offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in SKYSMOTOR and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.
