Nema 11 Non Captive Stepper Motor 32mm Stack Lead 2.54mm/0.1" 11LS13-04243-150N

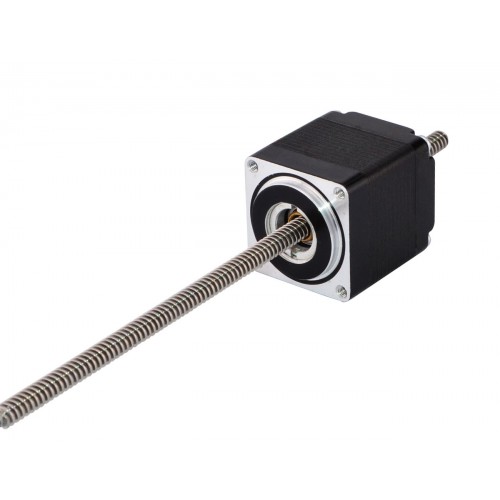

This model is almost exactly same as Haydon Kerk 28000 series size 11 non-captive stepper motor linear actuator. The motor part is 32mm body 1.8 degree 0.42A Nema 11 stepper motor, and it works with a 4.76mm (0.1874") diameter 150mm (5.9055") length lead screw, the linear travel is 2.54mm(0.1") per revolution.
Electrical Specification
- Manufacturer Part Number: 11LS13-04243-150N
- Motor Type: Non-captive Linear Stepper
- Step Angle: 1.8°
- Minimal Thrust: 29N (300pps)
- Rated Current/phase: 0.42A
- Phase Resistance: 11.9ohms
- Voltage: 5V
- Inductance: 6.7mH±20%(1KHz)
Physical Specification
- Frame Size: 28 x 28mm
- Body Length: 32mm
- Lead Screw Length: 150mm(5.9055")
- Lead Screw Diameter: Φ4.76mm(0.1874")
- Lead/Step: 0.0127mm(0.0005" )
- Lead Travel/Revolution: 2.54mm(0.1")
- Number of Leads: 4
- Lead Length: 300mm
- Weight : 119g
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Red/White
|
Green/White
|
Green
|
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Inductance(mH) | 6 |
Minimal Thrust(N) | 29 |
Motor Type | Non-Captive |
Phase Resistance(ohm) | 11.4 |
Rated Current (A) | 0.42 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 32.2 |
Frame Size(mm) | 28x28 |
Lead Screw Diameter(mm) | 4.76 |
Lead Screw Length(mm) | 150 |
Lead Revolution(mm) | 2.54 |
Linear Travel / Step(mm) | 0.0127 |
No. of Lead | 4 |
Lead Length(mm) | 300 |
