This model is economy linear stepper motor which named Nema 17 non captive linear actuator, it was composed of 48mm 1.8 degree 0.4A Nema 17 stepper motor and 200mm length Tr8x8 linear screw.

Electrical Specification

Manufacturer Part Number: 17N19S1684MB-200RS(17LS19-1684N-200G)

Motor Type: Non Captive Linear Stepper

Step Angle: 1.8 deg

Minimal Thrust: 6.5N(300pps)

Rated Current/phase: 1.68A

Phase Resistance: 1.65ohms

Voltage: 2.8V

Inductance: 3mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

Lead Screw Length: 200mm(7.874")

Lead Screw Diameter: Φ8mm(0.315")

Lead/Step: 0.04mm(0.0015748")

Lead/Revolution: 8mm(0.315")

Number of Leads: 4

Lead Length: 400mm

Weight: 400g

Connection

Lead Screw End Machining

Anti-Backlash Nut

SKYSMOTOR provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and SKYSMOTOR standard plastic nut after millions of cycles. SKYSMOTOR guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, SKYSMOTOR provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All SKYSMOTOR standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

Brakes

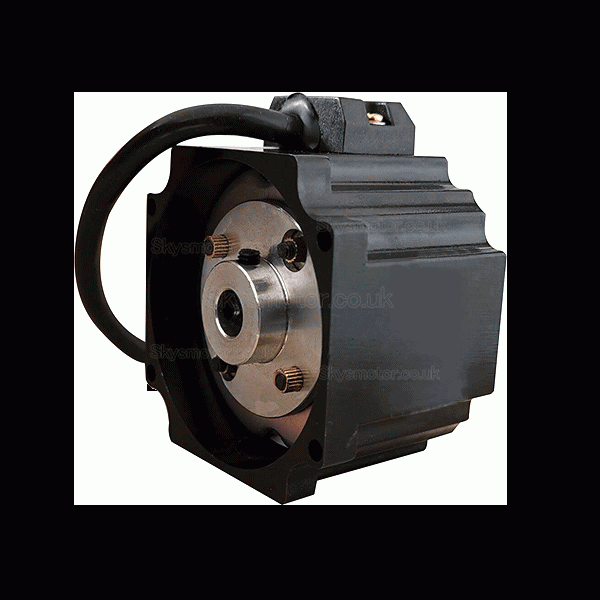

Especially Vertical applications or holding motors from sudden power-off status, SKYSMOTOR standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, SKYSMOTOR offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in SKYSMOTOR and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.
