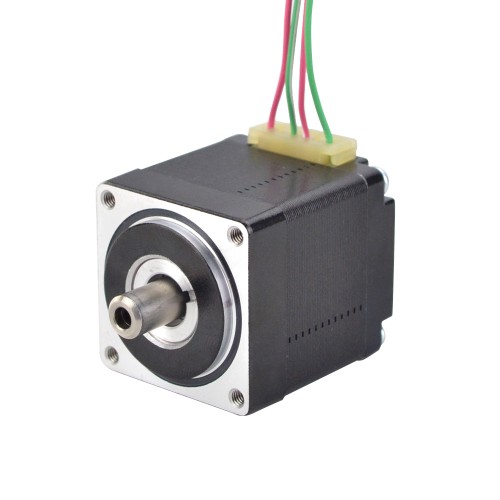

Nema 11 Hollow Shaft Stepper Motor 11HS13-1004H Dual Shaft 6Ncm 1.0A 4Wires
- Manuals and Documentation: Full Datasheet:
Nema 11 Hollow Shaft Stepper Motor 11HS13-1004H Dual Shaft 6Ncm 1.0A 4Wires
Electrical Specification
- Manufacturer Part Number: 11HS13-1004H
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 0.06 Nm(8.5oz.in)
- Rated Current/phase: 1.0 A
- Phase Resistance: 2.1 ohms± 10%
- Inductance: 1.5 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 28 x 28 mm
- Body Length: 32.2 mm
- Outer Shaft Diameter: Φ6 mm
- Inner Shaft Diameter: Φ3 mm
- Front Shaft Length: 10 mm
- Rear Shaft Length: 5 mm
- Number of Leads: 4
- Lead Length: 310 mm
- Weight: 0.11 kg
Connection
A+
|
A-
|
B+
|
B-
|
RED
|
RED/WHI
|
GRN/WHI
|
GRN
|
Electrical Specification | |
---|---|
Holding Torque (Ncm) | 6 |
Holding Torque (oz.in) | 8.5 |
Inductance(mH) | 1.5 |
Phase Resistance(ohm) | 2.1 |
Rated Current (A) | 1 |
Motor Specification | |
Bipolar/Unipolar | Bipolar |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 32.2 |
Frame Size(mm) | 28 x 28 |
Lead Length(mm) | 310 |
No. of Lead | 4 |
Shaft Type | Hollow |
Single Shaft/Dual Shaft | Dual Shaft |
Weight(g) | 110 |
