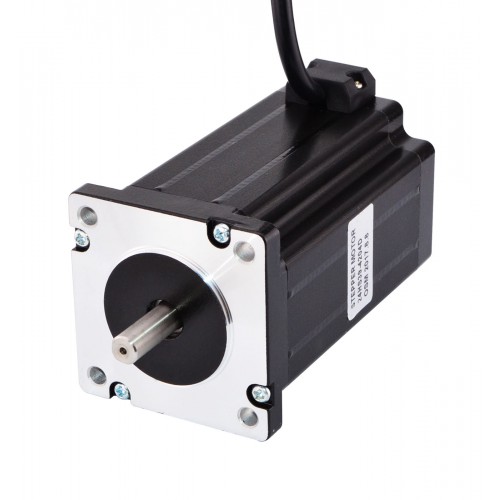

Nema 24 Dual Shaft Stepper Motor 24HS39-4204D 2.96V 4.2A 4Nm 4 Wires
This is a dual-shaft motor with a 13.5mm long rear shaft, and the shaft diameter is 8mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.
Electrical Specification
- Manufacturer Part Number: 24HS39-4204D
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 4Nm(566.4oz.in)
- Rated Current/phase: 4.24A
- Voltage: 2.96V
- Phase Resistance: 0.7ohms
- Inductance: 3mH ± 20%(1KHz)
Physical Specification
- Frame Size: 60 x 60mm
- Body Length: 100mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-Cut Length: 15mm
- Rear Shaft Length: 13.5mm
- Rear Shaft Diameter: Φ8mm
- Number of Leads: 4
- Lead Length: 500mm
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Green
|
Yellow
|
Blue
|
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Holding Torque (Ncm) | 400 |
Holding Torque (oz.in) | 566.4 |
Inductance(mH) | 3 |
Phase Resistance(ohm) | 0.7 |
Rated Current (A) | 4.24 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 100 |
Frame Size(mm) | 60x60 |
Single Shaft/Dual Shaft | Dual Shaft |
Shaft Type | D-Cut |
Shaft Diameter(mm) | 8 |
Shaft Length(mm) | 21 |
No. of Lead | 4 |
Lead Length(mm) | 500 |
Weight(g) | 1700 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
